Trucks All models Light Truck Sinotruk Howo NX 4x2 Refrigerated Truck

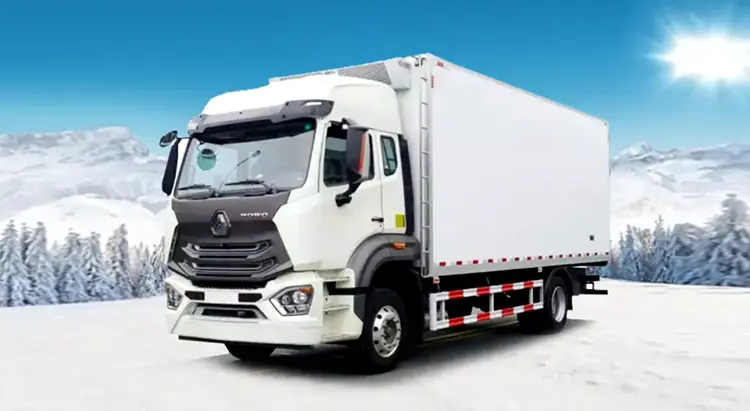

Sinotruk Howo NX 4x2 Refrigerated Truck

The Sinotruk Howo NX 4x2 Refrigerated Truck stands as a robust and efficient option in the specialized transport sector, particularly designed for goods requiring precise temperature control.

Models

Refrigeration Box Capacity: 40 CBM

Refrigeration Range: -5°C to -18°C

Payload: 9,925kg

Engine: MAN 210 HP, Germany

Refrigeration Unit: Thermo King RV580

Request a Quote WhatsApp

Product Description

Application

High-end chassis for refrigerated trucks

Features

The Sinotruk Howo NX 4×2 Refrigerated Truck stands as a robust and efficient option in the specialized transport sector, particularly designed for goods requiring precise temperature control.

Built on the proven Sinotruk HOWO platform, this 4×2 chassis configuration offers an optimal balance of maneuverability and payload capacity, making it well-suited for urban deliveries and regional distribution networks where reliability is paramount .

ITEM	DESCRIPTION
Vehicle Model	Sinotruk Howo NX 4×2 Refrigerated Truck
Chassis Brand	Sinotruk HOWO
Body Length	6,830mm
Engine	German MAN 255HP 6-cylinder 6.9L (MC07.25-60)
Transmission	HOWO 8-speed High Torque Transmission
Wheelbase	5,100mm
Tires	275/80R22.5 Vacuum Tires
Emission Standard	EURO VI
Standard Features	Sinotruk MAN Engine (MC07.25-60), 275/80R22.5 Vacuum Tires, Front Aluminum Alloy Wheels + Rear Lightweight Wheels, Airbag Seats, Automatic Air Conditioning, Electric Flip Cab, ABS, Sinotruk Intelligent Communication B Version, Multimedia Central Control Large Display Screen, 4-way Cameras, Dashcam, Power Windows and Doors, Remote Key, Central Locking, LED Daytime Running Lights, Electric Heated Mirrors, Multifunction Steering Wheel.
Exterior Dimensions(LxWxH)	9,230×2,600×3,980 (mm)
Body Dimensions(LxWxH)	6,830×2,420×2,520 (mm)
Gross Weight	18,000kg
Curb Weight	7,880kg
Payload	9,925kg
Refrigeration Range	-5°C to -15°C
Refrigeration Unit	Kaixue 990
Optional Units	Kelly, Huatai, Hanxue, Thermo King, Carrier, Bingsen, Xiangxue, Hanya, etc.
Body Configuration	The body is manufactured using a hydraulic suction integrated molding production line, with insulation performance reaching national A-level standards. The interior and exterior panels use high-quality 2.2mm fiberglass (non-absorbent, good insulation, strong hardness, anti-oxidation). The middle insulation layer is an 80mm thick PUR polyurethane panel, with aluminum alloy edging around the body, stainless steel corners, stainless steel door locks, stainless steel door frames and hinges, and energy-saving LED lighting inside the body.
Ventilation System	T-shaped ventilation grooves, bottom ventilation grooves, and ventilation partitions around the body.
Optional Features	Guide rail meat hook, T-shaped ventilation groove, right side opening door, temperature real-time monitoring with printing device. For seafood bodies, interior materials must be optionally made of stainless steel. Optional 12V-24V external power supply. When the vehicle is stopped, the body is refrigerated using an external power supply.

Performance

The versatility of the Sinotruk Howo NX 4x2 Refrigerated Truck makes it an invaluable asset for logistics companies, food distributors, and specialized freight carriers operating in diverse markets, including Southeast Asia, Africa, the Middle East, and South America.

Multi-function steering wheel

Set multimedia entertainment adjustment, cruise control, Bluetooth phone answering/hanging up function in one, the appearance of simple and modern design, texture delicate high-end;

Multi-function steering wheel

Set multimedia entertainment adjustment, cruise control, Bluetooth phone answering/hanging up function in one, the appearance of simple and modern design, texture delicate high-end;

Multi-function steering wheel

Set multimedia entertainment adjustment, cruise control, Bluetooth phone answering/hanging up function in one, the appearance of simple and modern design, texture delicate high-end;

LDWS Lane Departure Warning (Deluxe model)

The system can issue an alert before an unconscious lane departure occurs, reminding attention to stay in the original lane and drive safely.

FCWS Collision Warning (Deluxe Edition)

the system can issue an alert to remind the brakes before a collision occurs, and at the same time, the rear lights keep flashing to remind the rear vehicle to avoid rear-end.

Gallery

Its combination of dependable Sinotruk engineering, the practicality of the 4x2 drivetrain, and its critical refrigerated functionality positions the Sinotruk Howo NX 4x2 Refrigerated Truck as a key player in the global cold chain logistics industry.
