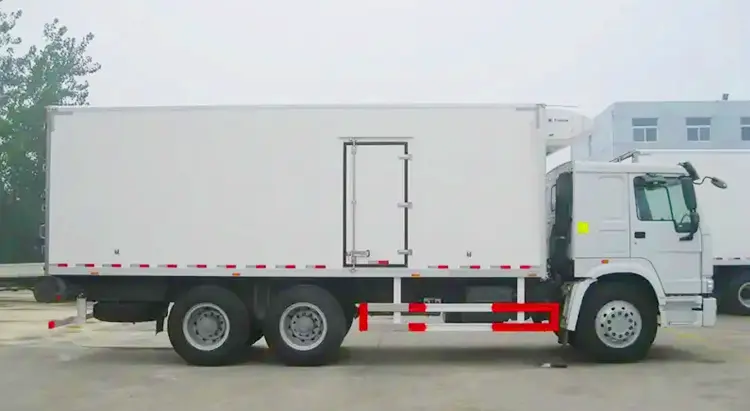

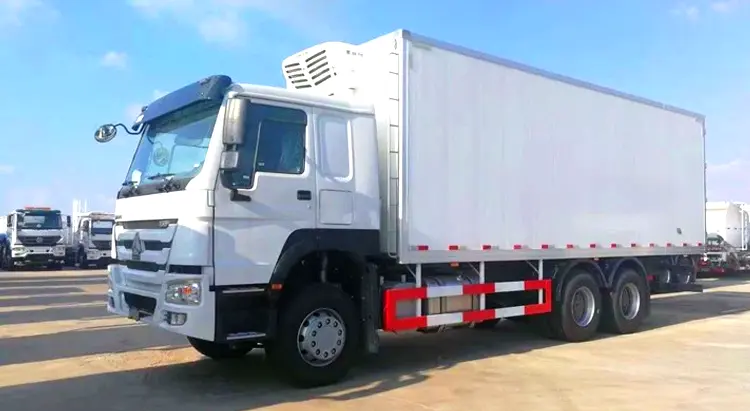

Sinotruk Howo 6x4 Refrigerated Truck

The Sinotruk Howo 6x4 Refrigerated Truck is a heavy-duty commercial vehicle engineered to meet demanding requirements for transporting perishable goods across diverse conditions. As a prominent model in Sinotruk's HOWO series.

Models

Temperature Range: -5 to -15

Max. driving speed: 80 (km/h)

Horse Power(HP): 371

Engine: SINOTRUK WD615.47

Fuel tank: 400 L

Request a Quote WhatsApp

Product Description

Application

A Robust Solution for Temperature-Controlled Transport

Features

The Sinotruk Howo 6×4 Refrigerated Truck stands as a powerful and capable solution within the refrigerated transport sector. Its combination of a strong chassis, reliable drivetrain, large capacity insulated box, and effective temperature control (down to -18°C) makes it particularly well-suited for demanding applications such as long-distance meat transport 1, fresh fruit and vegetable logistics , and other scenarios requiring guaranteed cold chain integrity.

As part of the Sinotruk HOWO range, known for its presence in global markets including Asia, South America, and Africa, this refrigerated model offers a practical and robust option for businesses requiring dependable heavy-duty temperature-controlled freight movement.

Sinotruk Howo 6×4 Refrigerated Truck Parameters

Vehicle Main Dimensions	Overall dimensions (L x W x H) mm	9800×2545×3980
	Carriage Size (L x W x H) mm	7100x2500x2500
	Wheel base (mm)	4300+1400
	Wheel track (front/rear) (mm)	2022/1830
Weight in KGS	Tare Weight	10000
	payload	30000
	Front axles loading capacity	1×7000
	Rear axles loading capacity	2×16000
Max. driving speed	80(km/h)
Engine	Brand	SINOTRUK
	Model	WD615.47
	Type	4-stroke direct injection , 6-cylinder in-line with water cooling, turbo-charging and inter-cooling
	Horse Power(HP)	371
	Emission standard	Euro 2
Gearbox	HW19710,10 Forwards gear & 2 reverse gear
Steering	ZF8198 power steering, hydraulic steering with power assistance
Clutch	Reinforced diaphragm clutch, diameter 430 mm
Fuel tank	400 L
Tire	315/80R22.5 tubeless tire, 11 pieces including one spare
Brakes	Service brake: dual circuit compressed air brake
	Parking brake :(emergency brake): spring energy, compressed air operating on rear wheels
	Auxiliary brake: engine exhaust brake
Van box	Size:710024002400mm, high density polyurethane as insulation layer.
	With aluminum alloy rail on the floor for better circulation of the cold air in the van.
Cooling system	American brand Carrier S850.
	Constant evaporator airflow
	Robust design
	High reliability
	Extreme low-noise capabilities
	High cooling performance

Performance

As part of the Sinotruk HOWO range, known for its presence in global markets including Asia, South America, and Africa 3, this refrigerated model offers a practical and robust option for businesses requiring dependable heavy-duty temperature-controlled freight movement.

Multi-function steering wheel

Set multimedia entertainment adjustment, cruise control, Bluetooth phone answering/hanging up function in one, the appearance of simple and modern design, texture delicate high-end;

Multi-function steering wheel

Set multimedia entertainment adjustment, cruise control, Bluetooth phone answering/hanging up function in one, the appearance of simple and modern design, texture delicate high-end;

Multi-function steering wheel

Set multimedia entertainment adjustment, cruise control, Bluetooth phone answering/hanging up function in one, the appearance of simple and modern design, texture delicate high-end;

LDWS Lane Departure Warning (Deluxe model)

The system can issue an alert before an unconscious lane departure occurs, reminding attention to stay in the original lane and drive safely.

FCWS Collision Warning (Deluxe Edition)

the system can issue an alert to remind the brakes before a collision occurs, and at the same time, the rear lights keep flashing to remind the rear vehicle to avoid rear-end.

Gallery

The Sinotruk Howo 6x4 Refrigerated Truck is a heavy-duty commercial vehicle engineered to meet demanding requirements for transporting perishable goods across diverse conditions.
