Sinotruk Howo 4×2 Wing Cargo Truck

Sinotruk offers a robust lineup of 4×2 Wing Cargo Trucks designed to meet diverse urban and regional logistics demands. These trucks are engineered for efficiency and reliability, featuring the practical 4x2 drive configuration ideal for paved roads and lighter loads.

Models

MODEL: ZZ1127G5215C1

Drive type: 4x2

Front axle: 3.6T

Engine: YUCHAI YC4E160-33

Power: 160HP(118kw)

Request a Quote WhatsApp

Product Description

Application

Sinotruk Howo 4×2 Wing Cargo Truck – Porters in the city

Features

For nimble city operations and last-mile delivery, the Sinotruk Howo 4×2 Wing Cargo Truck CDW series is a prime choice. Models like the CDW 757P6D boast a compact footprint (6995×2320×2520mm), powered by fuel-efficient engines like the 130HP YC4D130-33 diesel. With a 5-ton payload capacity and a cargo box measuring 5100mm long, this Sinotruk Howo 4×2 Wing Cargo Truck variant excels at transporting steel, aggregates, and general goods within city limits. Its maneuverability and lower running costs make it a popular option for short-haul tasks.

Truck Name	Sinotruk Howo 4×2 Wing Cargo Truck
MODEL	ZZ1127G5215C1
ENGINE	Manufacturer: YUCHAI
	Fuel type: Diesel engine
	Engine model: YC4E160-33, Euro II emission standard, water-cooled, four strokes, 4 cylinders in line with water cooling. Turbocharged and intercooling, directly injection
	Max output:160HP(118kw)
	Displacement:4.257L
CLUTCH	Φ300 diaphragm single-plate dry coil-spring clutch.
TRANSIMISSION	Model: HW90510C2, 10 forward & 2reverse
FRONT AXLE	3.6T
REAR AXLE	10.0T
STEERING	Left hand driving
BRAKING SYSTEM	service brake: dual circuit compressed air brake Parking brake(emergency brake):spring energy, compressed air operating on rear wheels Auxiliary brake: engine exhaust brake
Oil tanker	220L
TIRES	9.00R20 Radial Tire with one spare tire
CAB	2080 one and half row cabin, with A/C
Cargo body	67502300800mm Flat high-strength panel + 1500mm corrugated panel wingspan, with zippers for securing side panels. High-brightness LED lights on interior top and sides. Pre-wired external power connector (US plug) for controlling interior lighting. Switches on both sides of rear door frame individually control interior lighting on each side.
Weight	5365kg
DIMENSION IN (MM)	Wheel base	5200mm
	Dimension(Lx W x H)	8995x2400x*3650mm

Performance

For applications requiring greater power and capacity, Sinotruk provides heavier-duty 4×2 Wing Cargo Truck models under the HOWO brand.

Multi-function steering wheel

Set multimedia entertainment adjustment, cruise control, Bluetooth phone answering/hanging up function in one, the appearance of simple and modern design, texture delicate high-end;

Multi-function steering wheel

Set multimedia entertainment adjustment, cruise control, Bluetooth phone answering/hanging up function in one, the appearance of simple and modern design, texture delicate high-end;

Multi-function steering wheel

Set multimedia entertainment adjustment, cruise control, Bluetooth phone answering/hanging up function in one, the appearance of simple and modern design, texture delicate high-end;

LDWS Lane Departure Warning (Deluxe model)

The system can issue an alert before an unconscious lane departure occurs, reminding attention to stay in the original lane and drive safely.

FCWS Collision Warning (Deluxe Edition)

the system can issue an alert to remind the brakes before a collision occurs, and at the same time, the rear lights keep flashing to remind the rear vehicle to avoid rear-end.

Gallery

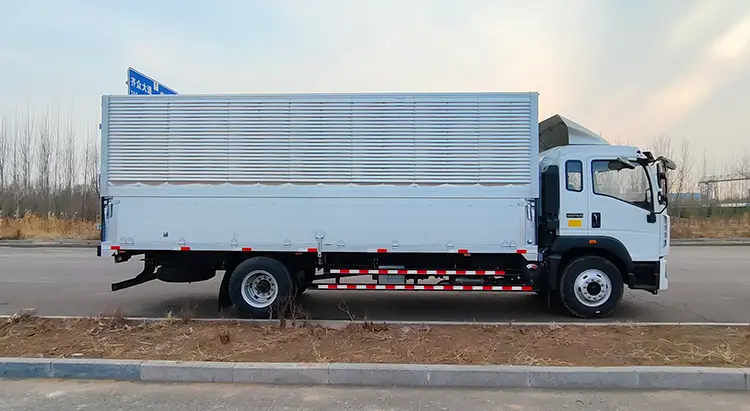

This Sinotruk Howo 4×2 Wing Cargo Truck offers a larger overall size (837724963048 mm) and robust construction, making it suitable for more demanding regional cargo transport needs while maintaining the advantages of the 4x2 setup.
