Model: ZZ5257M3841B
Engine: WD615.87 290hp
Fuel tank: 400L,iron
Max Speed: 102 km/h
Tank Volume: 20 CBM
Model: ZZ5257M3841B
Engine: WD615.87 290hp
Fuel tank: 400L,iron
Max Speed: 102 km/h
Tank Volume: 20 CBM

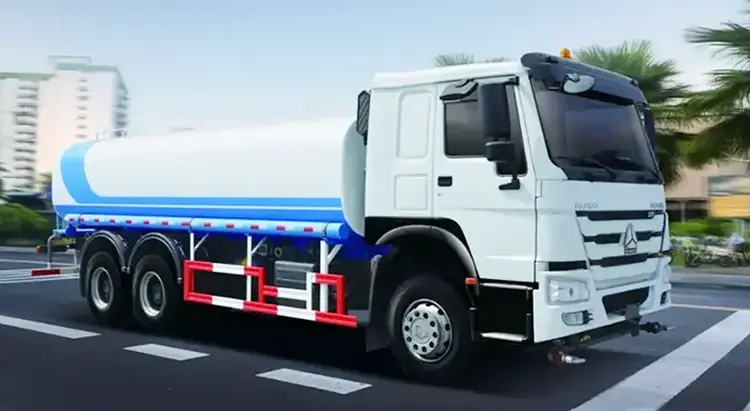

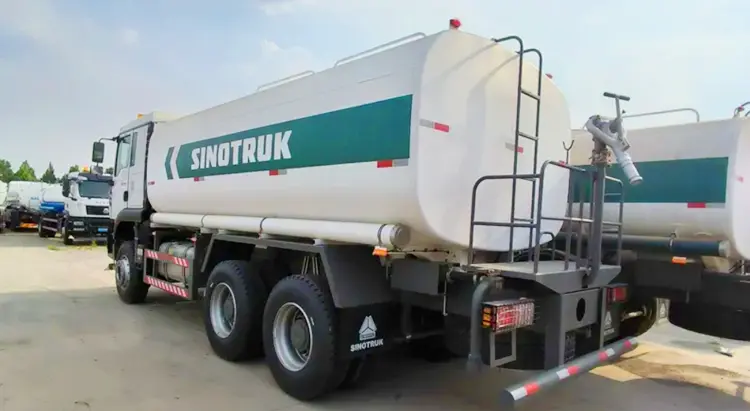

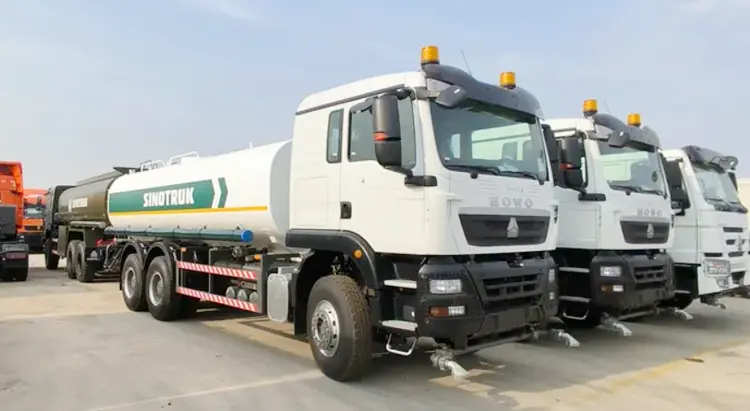

The Sinotruck Howo TX 6×4 Water Tanker Truck is a robust and reliable solution designed for large-scale water transportation and distribution needs. Built on Sinotruk’s proven HOWO platform, this vehicle combines significant power with high-volume capacity to excel in various industrial, municipal, and agricultural applications.
Sinotruck Howo TX 6×4 Water Tanker Truck stands out as a powerful (371hp), high-capacity (15,000-20,000L) solution built on a robust 6×4 chassis. Its versatility as a water transporter and sprinkler/bowser makes it an indispensable asset for industries and services requiring efficient large-scale water management.
| Truck Name | Sinotruck Howo TX 6×4 Water Tanker Truck | |
| Cabin | Driving type 6×4 LHD/RHD Model:ZZ5257M3841B |
|
| HW76 Lengthen cab, single bunk,safety belts,left hand driving,air conditioner. | ||
| Overall Dimensions | 8800x2496x3215,3800 mm | |
| Wheel Base | 3800+1350 mm | |
| GVW | 25000kg | |
| Front axle loading capacity | 1 x 7000 | |
| Rear axles loading capacity | 2 x 16000 | |
| Engine | Brand | Sinotruk |
| Model | WD615.87 | |
| Type | 6-cylinder in line, 4-stroke, water-cooled, turbo-charged & inter-cooled, direct injection | |
| Displacement | 9.726L | |
| Bore x Stroke | 126x130mm | |
| Horse Power (HP) | 290 | |
| Emission standard | Euro II | |
| Max Speed | 102 km/h | |
| Tire | 12.00-20, 12.00R20 | |
| Transmission | HW15710 or HW19710 transmission,10 forward & 2 reverse,with PTO | |
| Steering | ZF8098 | |
| Oil Tank | 300L | |
| Tank Volume | 20 CBM | |
| Brake System | Service brake:Dual circuit compressed air brake | |
| Parking brake (emergency brake):Spring energy,compressed air operating on rear wheels | ||
| Auxiliary brake:Engine exhaust valve brake | ||
| Electrics | Operating voltage:24V,negative grounded | |
| Batteries:2×12 V,165 Ah | ||
| Horn,headlamps,fog lights,brake lights,indicators and reverse light | ||
| Option | Vertical Muffler,ABS,Automatic Break Clearance Adjusting Arm, Traveling Data Recorder,Metal Pipeline,Engine Protective Board |
|
