Sinotruck Howo Bitumen Tank

Sinotruck Howo Bitumen Tank is professional construction equipment specialized in spraying emulsified asphalt, cutback asphalt, hot asphalt, hot modified asphalt and various binder.

Automatic Grade: Automatic

Weight (KG): 25000kg

Chassis: Howo

Horsepower: 336HP

Product Capacity: <40t/h

Sinotruck Howo Bitumen Tank

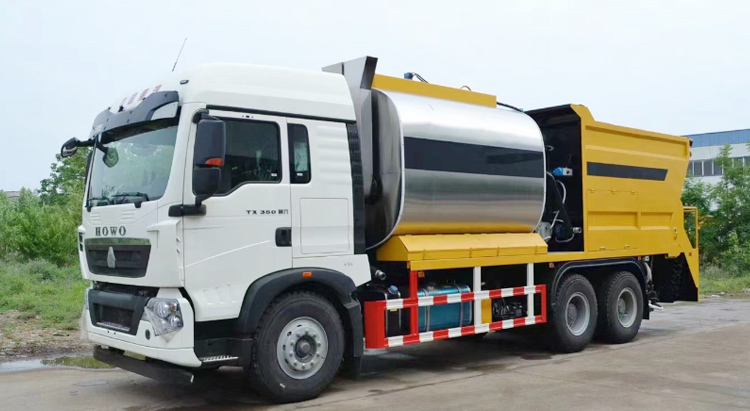

product img
Product Description
For Spray Asphalt Binder Aggregate

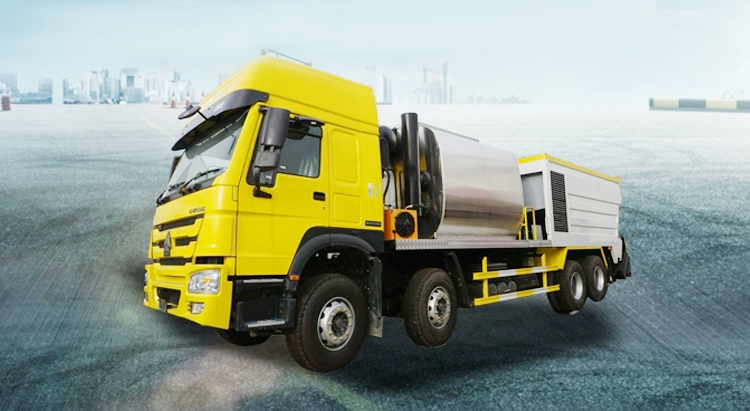

Design img

Sinotruck Howo Bitumen Tank is researched and developed by Sinotruck  through years of construction and equipment design experience based on the present road conditions. It is one of the series of asphalt distributing machinery which is easy-operated, economical and practical. It is professional construction equipment specialized in spraying emulsified asphalt, cutback asphalt, hot asphalt, hot modified asphalt and various binder.
On the basis of introduced advanced technologies both domestic and abroad, this distributor add some humanized designs that ensure technical content of construction quality and improve construction conditions and environment. Heat oil pipe is equipped in asphalt pipelines. Heat oil internal heating method guarantees liquid running smooth and prevents asphalt from coke burning. In the process of manual spray, the rotation indicator reads asphalt pump rotation speed. The operator could calculate the corresponding vehicle speed and asphalt rotation speed to different spray volume according to our specified formula, so as to guarantee uniform spray volume. In the process of automatic spray, the operator just set spray volume in the console and start velocity meter, and then the automatic control system could regulate asphalt pump rotation speed according to the vehicle speed, so as to guarantee precise and even spray. Its reasonable designs guarantee the asphalt spray uniformity. This product gets through the strict detection of our operators and enjoys stable and reliable construction performance, and is known as ideal economical road maintenance equipment.
 It could be used to deal with upper and lower seal layer, prime layer,  asphalt surfacing, asphalt penetration surface, fog seal layer and so on. It also could be used to transport liquid asphalt and other heavy oil.

Working principle
The operating principle of asphalt distributor is to pump the hot asphalt from asphalt storage pool into asphalt tank through asphalt pump. Transport it to construction site and heats the asphalt up to working temperature by heating system; Open asphalt pump and spraying valve by operating electrical apparatus control system; According to three overlapping spraying effect to spray the hot asphalt on pavement on the basis of measured distributing amount and pressure. The residual asphalt in pipeline will be transported into asphalt tank after finishing the work.


Chassis Information
Chassis brand ZZ1257N4341W
Drive type 6X4
Dimension Parameter
Overall dimension (L*W*H) (mm) 10200*2500*3730
Wheel base (mm) 4325+1350
Wheel No. 3
Weight Parameter
GVW (kg) 25000
Kerb weight (kg) 18200
Front/Rear Axle load HF7T /ST16T
Engine Parameter
Model WD615.69
Manufacturer CNHTC
Horsepower (hp) 336
Displacement / power (ml/kw) 9726/247
Engine type 6 cylinder in line, 4 stroke, water cooled, direct injection
Emission Standard EURO 2
Control type Manual
Gear Shift 10 speed forward, 2 speed reverse
Type 295/80R22.5
Tyre No. 10+1 spare tire
Type HOWO HW76 flat-roof cab with A/C, power steering

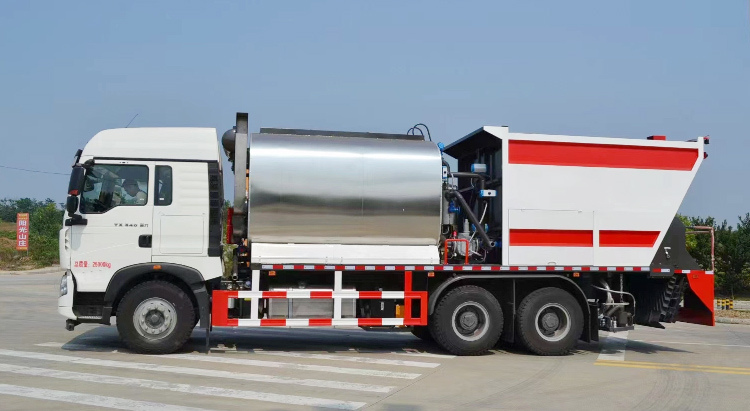

Synchronous Chip Sealer Upper Structure
Volume 8M asphalt tank + 12M3 stone silo
Material of the asphalt tank Inner 4mm carbon steel, medium 100mm rock wool, outer 1mm stainless steel
Spraying medium emulsified asphalt, hot asphalt, modified asphalt
Asphalt Pump Model QGB950 (high viscosity asphalt pump)
Hydraulic system Gear pump (Tianjin GPC4-50-20-16), automatic reversing valve and relief valve, asphalt pump hydraulic drive motor model 05-130-BD31; proportional valve EFRD-G03-160-5-31 (Taiwan)
Control mode Touch screen computer intelligent control in cab, control system (Germany Siemens); 32pcs asphalt intelligent nozzles (one control one); 16pcs stone material door.
Heating mode heat transfer oil automatic heating + burner G20 (Italian imported).
Gasoline generator HONDA 5.5KW
Spraying rate of the asphalt 0.25-4.0L/M2
Spraying width of the asphalt 4m
Spraying rate of the stone adjustable
Sinotruck Howo Bitumen Tank is professional construction equipment specialized in spraying emulsified asphalt, cutback asphalt, hot asphalt, hot modified asphalt and various binder.
