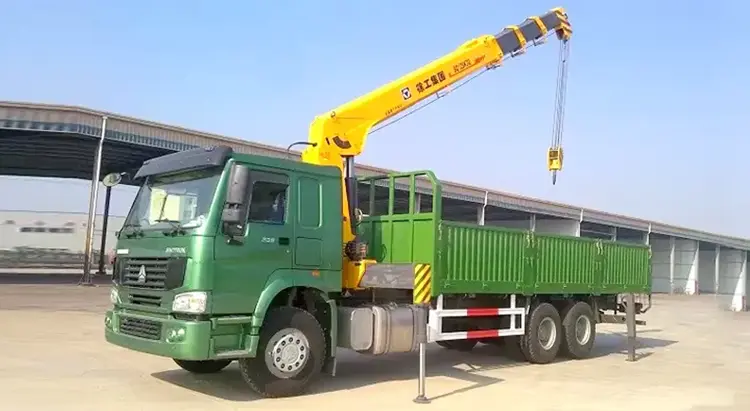

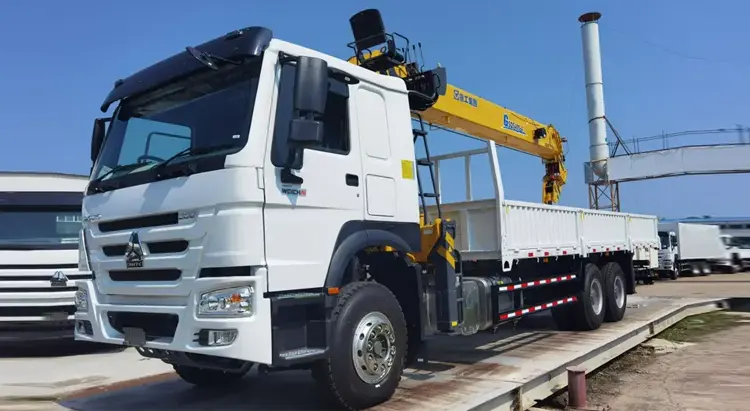

Trucks All models Special Vehicle Sinotruck Howo 6×4 5ton Mounted Crane Truck

Sinotruck Howo 6×4 5ton Mounted Crane Truck

The Sinotruck Howo 6×4 5-ton Mounted Crane Truck combines robust hauling capabilities with efficient hydraulic lifting, making it ideal for construction, logistics, and industrial applications.

Models

Engine:WP10.380E22

Transmission: HW19710+HW70

Chassis: Howo

Front axle: VGD95 drum

Crane specs: XCMG crane

Request a Quote WhatsApp

Sinotruck Howo 6×4 5ton Mounted Crane Truck

Product Description

Application

Power and Versatility for Heavy Lifting

Features

1. Core Design & Specifications
Chassis & Drivetrain: Built on a reliable 6×4 all-wheel-drive platform, it ensures superior traction and stability on challenging terrains. The chassis supports a gross vehicle weight (GVW) of up to 20 tons, enabling heavy-duty transport .
Crane System: Features a 5-ton hydraulic truck-mounted crane with a lifting radius of 6.2–8 meters. The crane offers precise control for loading/unloading cargo, machinery, or construction materials .

2. Performance Highlights
Engine & Power: Powered by SINOTRUK’s 300–480 HP engines (e.g., Euro 6-compliant options), delivering high torque for demanding tasks .
Efficiency: Hydraulic transmission enables smooth operation and user-friendly handling, reducing manual effort .
Durability: Reinforced steel construction ensures longevity in rugged environments, with corrosion-resistant materials available per customer requirements .

Truck Name		Sinotruck Howo 6×4 5ton Mounted Crane Truck
Dimension(L×W ×H)（unloaded）（mm）		1035025004150
Approaching angle/Departure angle（°）		16/12
Overhang(front/rear) (mm)		1500/2900
Wheel base (mm)		4600+1350
Max speed（km/h）		75
Front Axle Weight（kg）		9500
Rear Axle Weight（kg）		2×16000
Engine	Model	WP10.380E22
	Fuel type	Diesel
	Displacement (ml) Power(kw)	9726 280
	Emission	EURO 2
Fuel tanker capacity		400
Transmission	Model	HW19710，10 forward&2 reverse10
Brake system	Service brake	Dual circuit compressed air brake
Brake system	Parking brake	spring energy, compressed air operating on rear wheels
Steering system	Model	BOSCH （LHD）
Front axle	Steering with double T-cross section beam
Rear axle	Cast axle housing, central double reduction with differential locks between axles and wheels
Electrical system	Battery	2X12V/165Ah
	Alternator	28V-1500kw
	Starter	7.5Kw/24V

Performance

Chassis & Drivetrain: Built on a reliable 6×4 all-wheel-drive platform, it ensures superior traction and stability on challenging terrains . The chassis supports a gross vehicle weight (GVW) of up to 20 tons, enabling heavy-duty transport.

Safe and Reliable

More efficient and economical 2.0T turbocharger engine. McPherson independent front suspension / High-strength rear suspension with torsion beam Ultra-high-strength cage body, Reinforced boron steel side impact prevention

Comfortable driving

Bosch 9.3 ESP single tube hydraulic shock absorberFront and rear independent suspension

Exclusive luxury

Luxury interior upholstery in leather in contrasting colors, ergonomic seats. 10.25-inch waterfall high-definition large screen, intelligent car connection.

Classic and Elegant

Aesthetic design highlighted by its conciseness and power. Integrated high and low beam headlights, high brightness inductive LED headlights. Large panoramic roof

Technology

10-inch Touchscreen. Electric Side Mirrors. Digital Meter. 360 Panoramic Cameras. Cruise Control. Keyless Entry System. GPS Navigation. Full LCD air conditioner touch panel Bluetooth/car phone Start the system with one click

Gallery

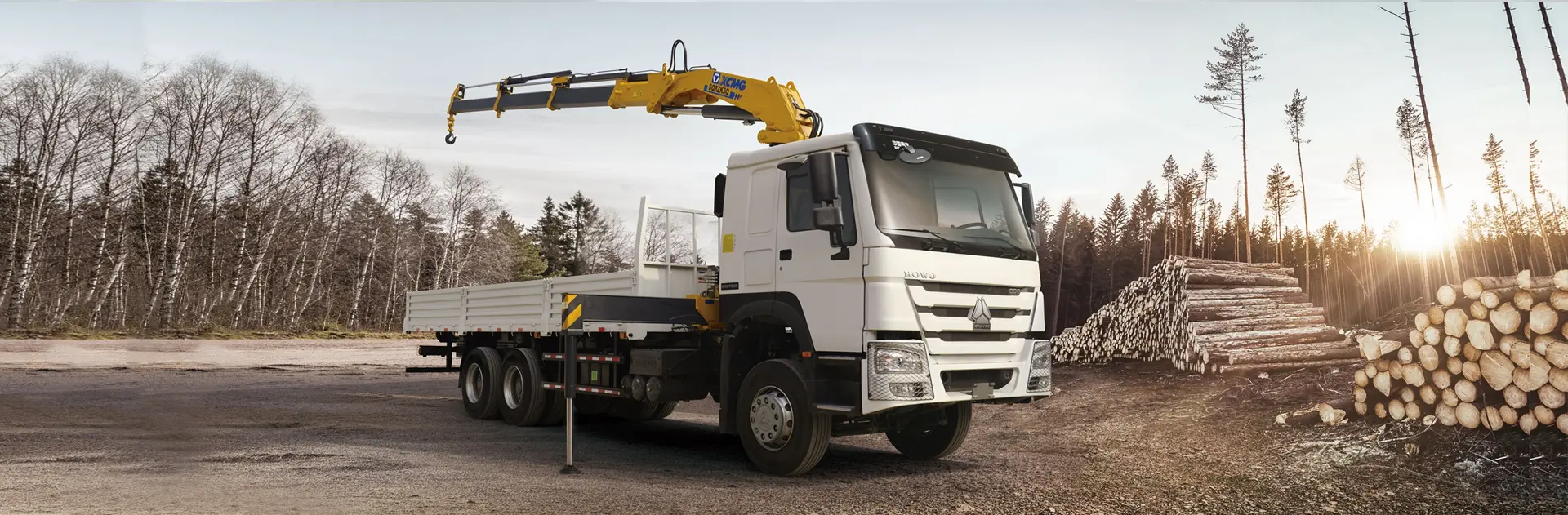

Sinotruck Howo Truck Crane is ready to meet the challenge for the city. Each of Howo boom truck uses XCMG crane that brings light lifting capacity, flexibility, and convenience to your city transport and Jobsite.
