Trucks All models Heavy Truck Howo TX 8×4 Dump Truck 12 Wheeler

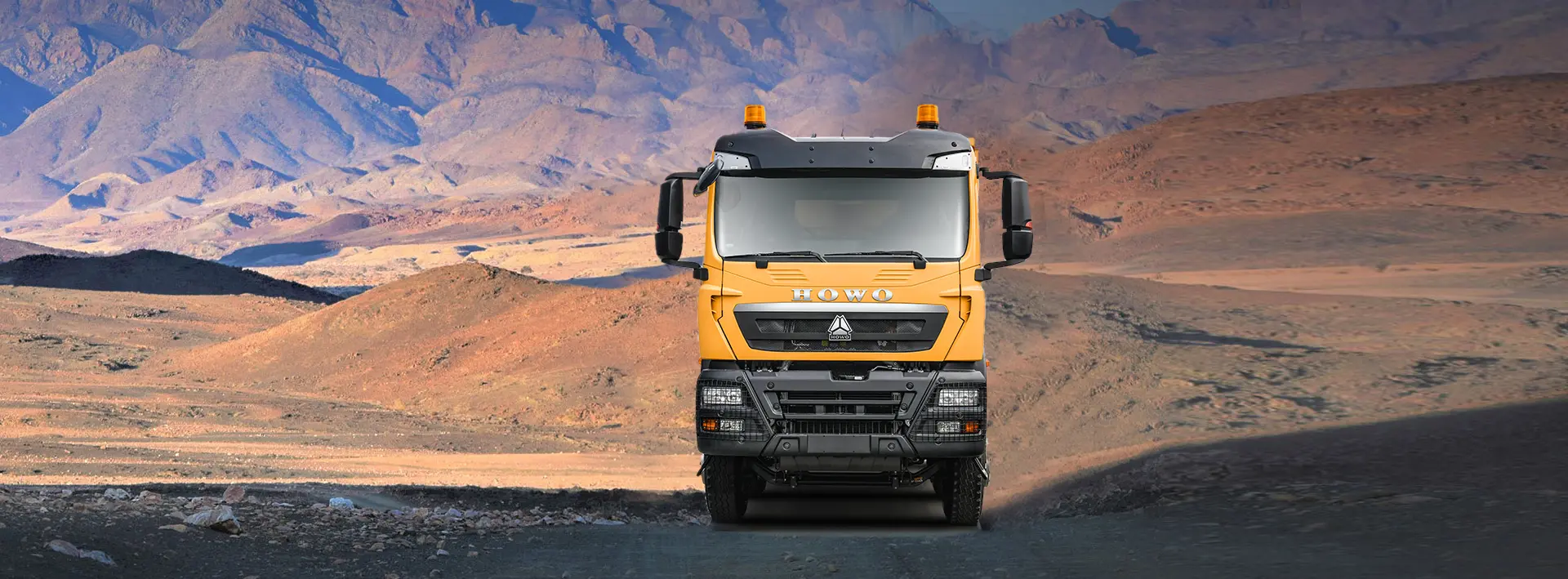

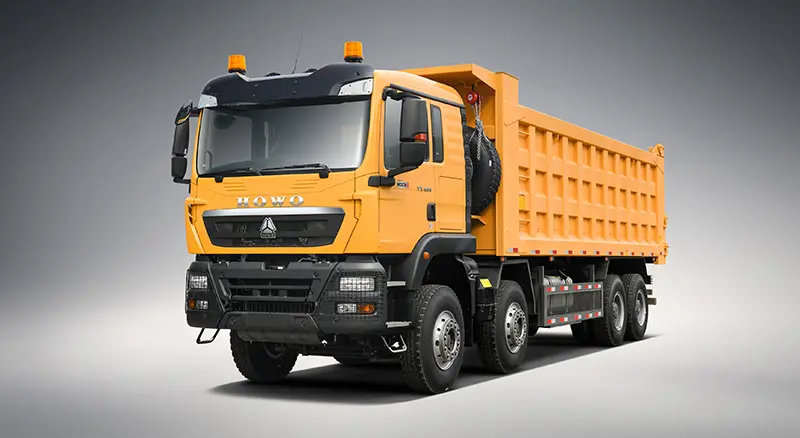

Howo TX 8×4 Dump Truck 12 Wheeler

Howo TX 8×4 Dump Truck 12 Wheeler has excellent fuel economy performance, helping users reduce operating costs, which is valued worldwide.

Models

Drive type: 8x4

Engine: Sinotruk WP10.380E22

Maximum Horsepower: 400 HP

Transmission: Sinotruk HW25712

Fuel tank capacity: 400L

Request a Quote WhatsApp

Product Description

Application

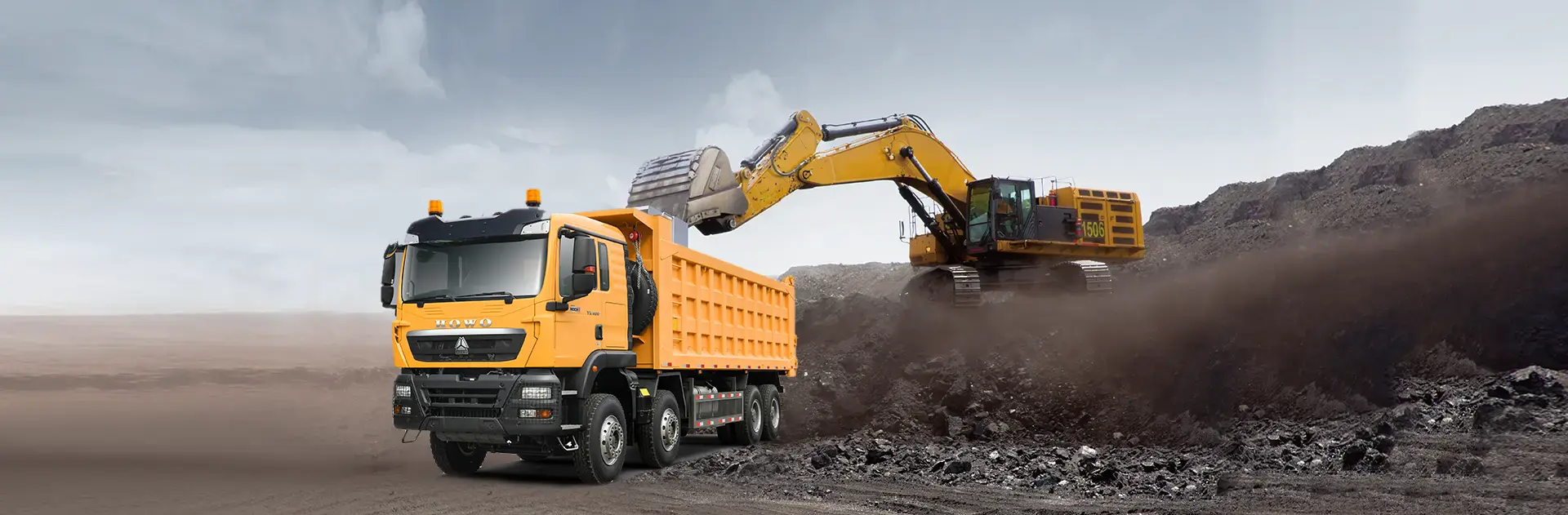

Howo TX 8×4 Dump Truck 12 Wheeler is a high-efficiency truck designed for heavy-duty transportation

Features

Howo TX 8×4 Dump Truck 12 Wheeler Specifications

Model: ZZ3317V3867B1R
Made Year: Latest Model, Brand new, will be produced according to orders
Cabin: HW76, long cab, with one sleeping berth, with air conditioner, with high metal bumper, with safety belts
Engine: WP10.380E22, 380HP, Euro II, 4 stroke direct fuel injection, mechanical type, displacement: 9.726L
Gearbox: HW19710, manual, 10 F & 2 R, with HW50 PTO (power-take-off)
Front axle: VGD95, 2x9500kg, drum brake
Rear axle: MCP16ZG, 2x16000kg, drum brake, diff. ratio: 5.26
Extra Axle: 13000kg, with 4 pcs tyres, liftable
Suspension: reinforced leaf springs (Front /Rear: 11/11/12 pieces)
Frame: Double layer frame (8+8/300)mm
Tires: 12.00R20, tube, 18PR, 13 pieces (including one spare tyre)
Fuel tank: 400L, aluminum material, with locking cap
Steering: BOSCH brand, hydraulic operation with power assistance
Cargo Body: 7300*2300*1500mm, 25.19CBM, High tensile steel material, thickness of bottom plate 8mm, thickness of side plate 6mm, China Brand FRONT lifting hydraulic mechanism
Overall Measurements: 10400x2600x3500mm
Color: White/ Grey/ Red optional

With oil bath air inlet system
With reverse buzzer
With rear towing hook and fire extinguisher
With intercooler protection metallic plate

Performance

With the increase in environmental awareness, many countries have put forward higher requirements for the emission standards of heavy-duty trucks, and Howo TX 8×4 Dump Truck 12 Wheeler has fully considered this in its design, meets international environmental standards, and enhances its competitiveness in overseas markets.

Excellent Ergonomic Design

All controls, instrument panels, and displays are intuitively arranged for easy access and quick information retrieval, minimizing distractions and maximizing driver focus.

Strong Power, Efficient and Reliable

HOWO-TX powertrain delivers stable and reliable power support for a wide range of applications, including long-distance hauling, heavy-load transport, and challenging road conditions.

High Comfort

Featuring an adjustable air suspension seat, the HOWO-TX offers multi-directional electric adjustment and lumbar support, allowing drivers to personalize their seating for optimal comfort.

All-Around Vision, Everything in Sight

Featuring wide-view design, four-way monitoring system (optional), and observation window (optional), the driver is accessible to comprehensive visual information about the surrounding environment and traffic dynamics of the vehicle, thus making accurate assessments, and safely responding to various situations.

Transmission - Always in the Right Gear

The HW series transmission incorporates a globally advanced transmission design, employing a double countershaft main transmission coupled with a planetary gear auxiliary transmission. This results in simpler, more reliable, and more durable PTO and gear shifting operations.

Gallery

In addition, the sinotruk Howo brand enjoys a good reputation in the international market, and with its reliable quality and high-quality after-sales service, Howo TX 8×4 Dump Truck 12 Wheeler has established a good reputation among overseas customers. This provides strong support for its export and attracts more international buyers.
