Howo TX 6×4 Tractor Head

This Howo TX 6×4 Tractor Head is equipped with an advanced engine and 6×4 drive system, which can easily cope with various complex transportation tasks.With its powerful power and excellent stability, it has become an ideal choice for the logistics and transportation industries.

Models

Drive type: 6x4

Engine: Sinotruk MC11.43-30

Maximum Horsepower: 430hp

Transmission: Sinotruk HW25716XAL

Fuel tank capacity: 600L

Request a Quote WhatsApp

Product Description

Application

Howo TX 6×4 Tractor Head is a high-performance tractor designed for long-distance transportation and heavy-load operations.

Features

In the logistics industry, Howo TX 6×4 Tractor Head is often used in conjunction with various types of trailers, and can transport a variety of goods, including containers, bulk cargo and heavy equipment. Howo TX 6×4 Tractor Head’s large-capacity fuel tank design also ensures long-distance driving endurance, reduces refueling frequency, and improves transportation efficiency.

Howo TX 6×4 Tractor Head Specifications

Model		Howo TX 6×4 Tractor Head
Chassis Model		ZZ4257V324GB1R
Drive type		6×4
Kerb Weight(kg)		8960
GCW(kg)		50000
Dimensions LxWxH(mm)		6800×2500×3225
Wheelbase(mm)		3200
Cabin	Model	TX-F
Engine	Model	MC11.43-30
	Horse Power(Hp)	430
	Maximum torque(N ·m/rpm)	1500N ·m/1050-1400rpm
	Rated power(kW/rpm)	319kW/1900rpm
	Emission	Euro Ⅲ
	Displacement	11 L
Transmission	Model	HW25716XAL
	TYPE	Manual-Automatic
	Gear position	14 forwards &2 reverses
AXLE	Front axle Load capacity(kg)	VGD71 (Drum) 7100
	rear axle Load capacity(kg)	MCJ12BGY 12000×2
	Ratio	3.70
Chassis	Thinkness(mm)	8/280
Suspension	Type	Leaf springs(3/5)
Steering	Model	Bosch
Fifth Wheel	Model	2.5 inch
Fuel tank capacity	Volume(L)	600
Tire	Mode	12.00R24,315/80R22.5

Performance

The power system of Howo TX 6×4 Tractor Head provides excellent traction, allowing it to maintain good maneuverability on both highways and rugged roads.

SINOTRUK's Exclusive High-End Power

Experience more power with less fuel: Employing the most advanced BOSCH high-pressure common rail system, the ECU precisely controls the fuel injection process according to the engine’s operating state, achieving a maximum injection pressure of 1600 bar to ensure superior fuel atomization, increased engine power, and reduced fuel consumption.

Transmission - Always in the Right Gear

The HW series transmission incorporates a globally advanced transmission design, employing a double countershaft main transmission coupled with a planetary gear auxiliary transmission.

Axles - Carry More, Cost Less

The MC series drive axles and V series steering axles are engineered based on advanced German axle technology and improved with the latest technical standards, offering higher transmission efficiency, superior heat dissipation, increased load capacity, and extended service life to accommodate various road conditions.

All-Around Vision, Everything in Sight

Featuring wide-view design, four-way monitoring system (optional), and observation window (optional), the driver is accessible to comprehensive visual information about the surrounding environment and traffic dynamics of the vehicle, thus making accurate assessments, and safely responding to various situations.

High Comfort

Featuring an adjustable air suspension seat, the HOWO-TX offers multi-directional electric adjustment and lumbar support, allowing drivers to personalize their seating for optimal comfort. Crafted from high-quality, breathable materials, the seat effectively reduces fatigue during long drives.

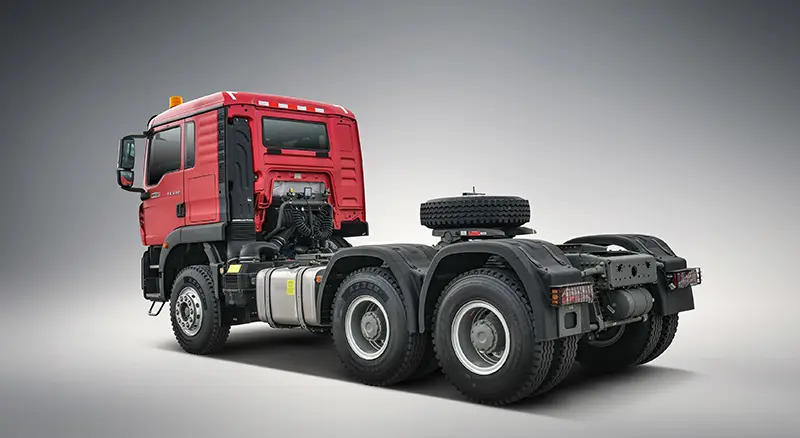

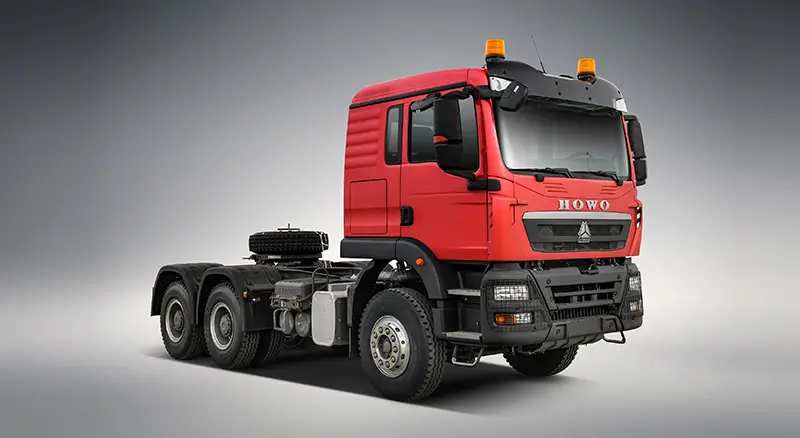

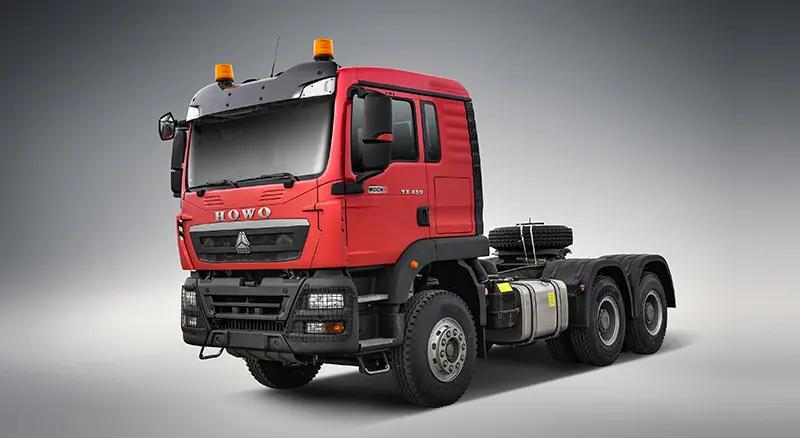

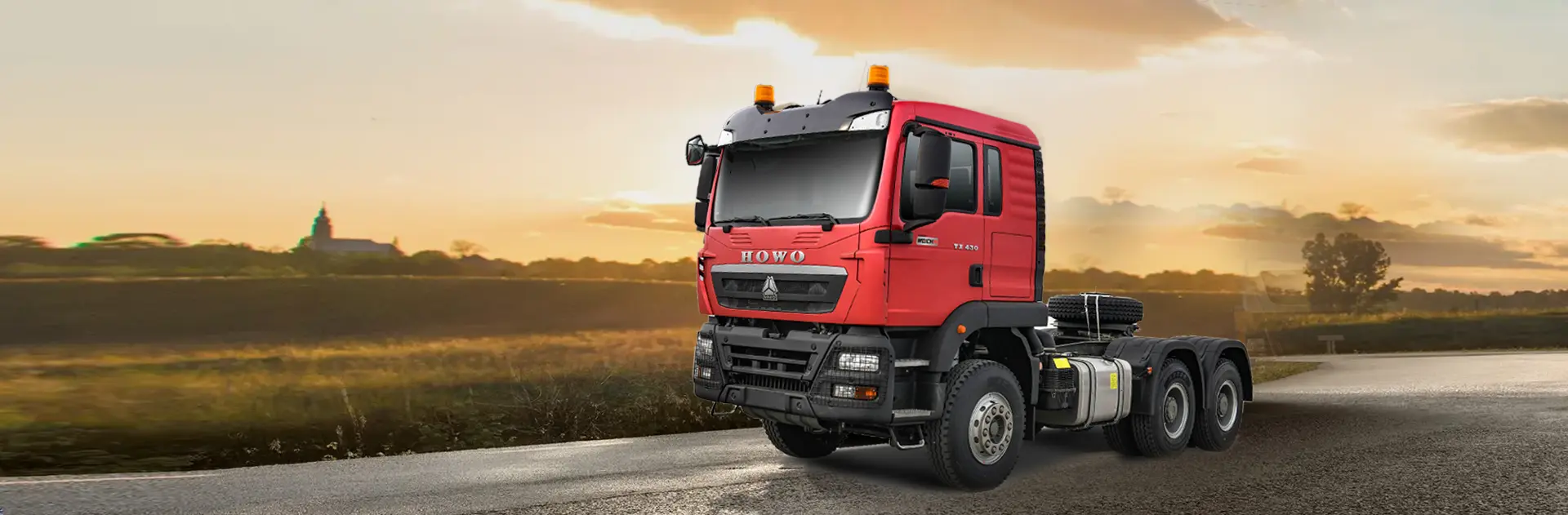

Gallery

This makes Howo TX 6×4 Tractor Head very suitable for long-distance cargo transportation, and can efficiently transport goods from one location to another to meet customer needs.
