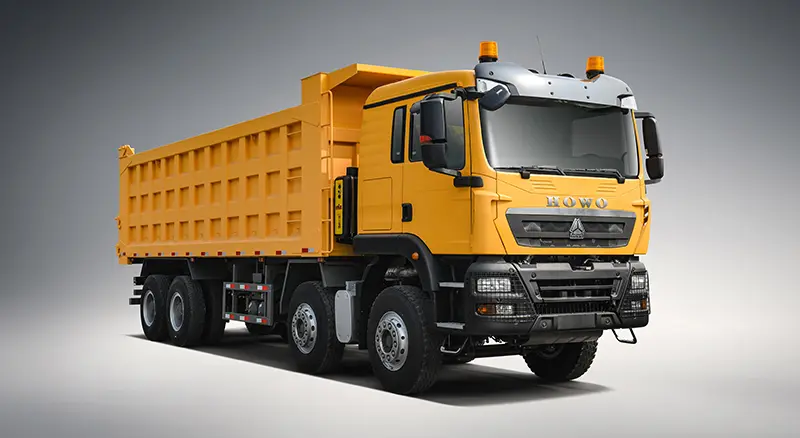

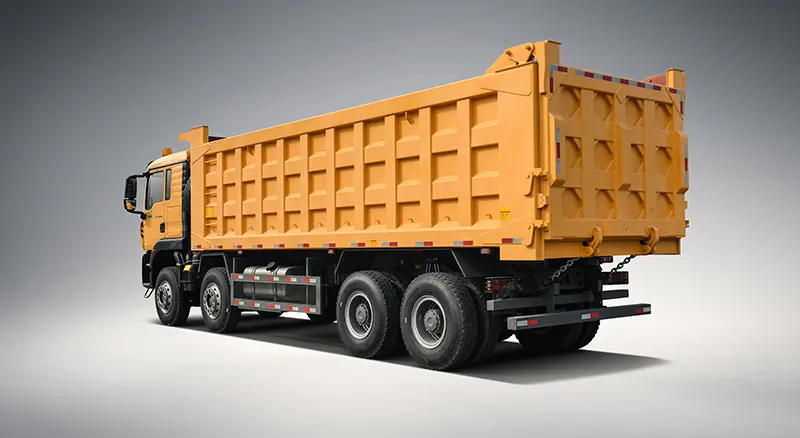

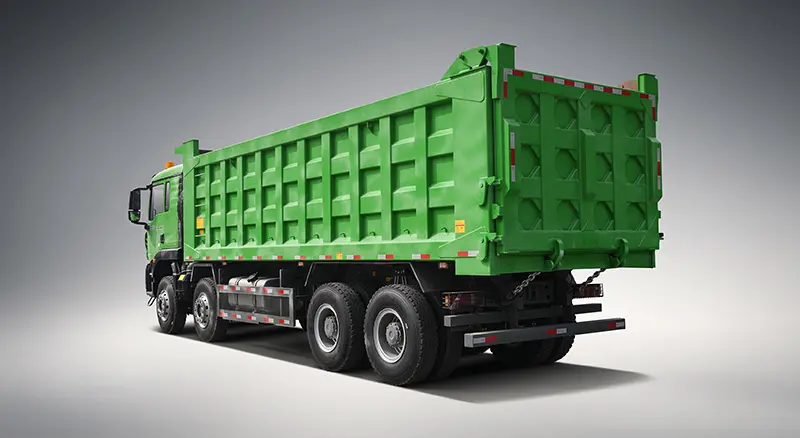

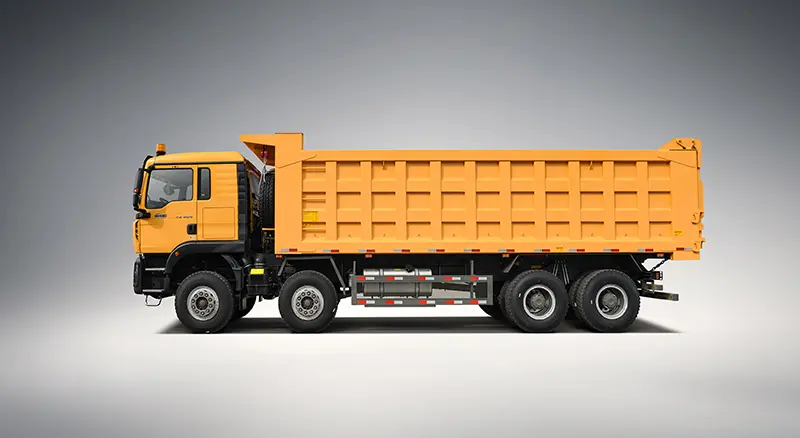

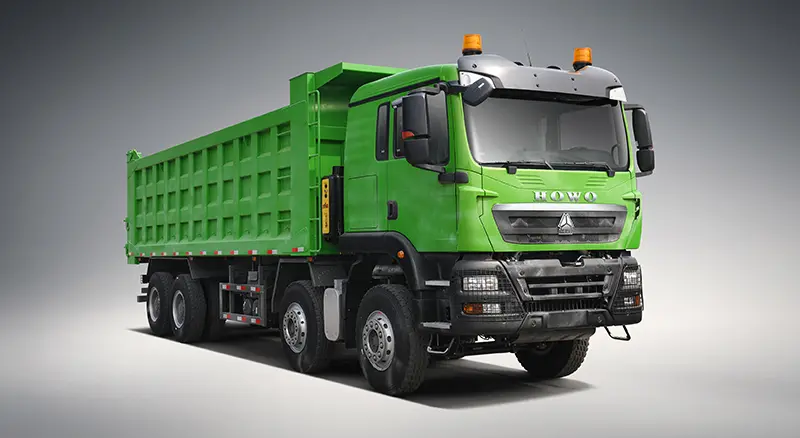

Trucks All models Heavy Truck Howo TX 400 8x8 Dump Truck

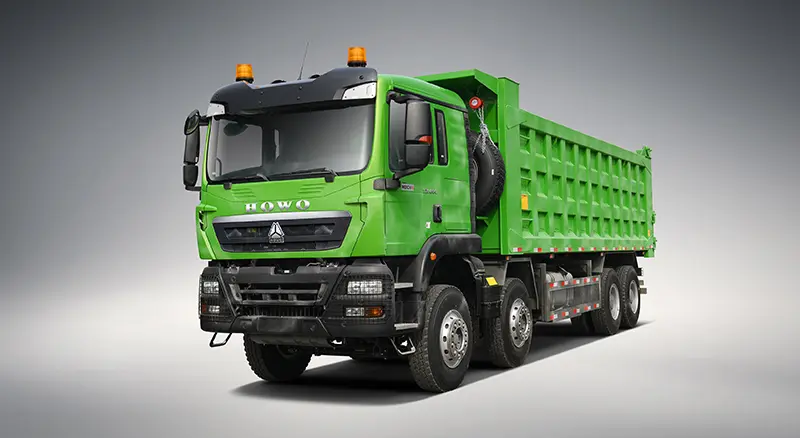

Howo TX 400 8x8 Dump Truck

Howo TX 400 8x8 Dump Truck not only excels in performance, but also demonstrates its unique advantages in a variety of application scenarios.

Models

Drive type: 8x4

Engine: Sinotruk MC11-54-30

Maximum Horsepower: 400 HP

Transmission: Sinotruk HW70PTO

Fuel tank capacity: 400L

Request a Quote WhatsApp

Product Description

Application

HOWO-TX: A Versatile Player in the Heavy Truck Field, All-Around Excellence Achieves High Efficiency

Features

Howo TX 400 8×8 Dump Truck is a high-performance truck designed for extreme heavy-duty transportation. With its powerful 400 horsepower and 8×8 all-wheel drive system, it has become a leader in the heavy-duty transportation industry. This Howo TX 400 8×8 Dump Truck not only excels in performance, but also shows its unique advantages in a variety of application scenarios.

In addition, Howo TX 400 8×8 Dump Truck also plays an important role in urban infrastructure construction. Its spacious cabin design can accommodate a large amount of earth, sand and gravel and construction materials, greatly improving transportation efficiency. Whether in narrow city streets or on wide construction sites, the Howo TX 400 8×8 Dump Truck can respond flexibly to ensure the smooth progress of the project.

Howo TX 400 8×8 Dump Truck Specifications

Brand: HOWO	Drive type: 6×4,8×4	Substrain: TX
Total mass (t):25	Weight (kg):9700	Wheelbase (mm):3625
Vehicle length (mm):7275	Vehicle width (mm):2522	Vehicle height (mm):3250, 3825
Engine: WD615.47,WP10.380E22,WP12.400E201 ,WP12.430E201,MC11.43-30,MC11-54-30	Engine power (Ps): 400,420,430,460	Emission level: Europe Ⅱ,Ⅲ,Ⅳ,Ⅴ
Cab: TX-M,TX-F	Transmission: HW19710,HW19712+HW70PTO,HW25712,ZF16S2231-TO
Frame: Double layer frame (8+8/300)	Front Axle: HF7,HF9,VGD71,VGD95 Front Axle (Drum)	Drive Axle: HC16,ST16,AC16,MCY13BGS,MCP16ZG ,MCX16ZG Dual Rear Axle(Drum)
Drive Axle Ratio: 3.7,3.93,4.11,4.42,4.77,5.26,5.451,5.73	Steering gear:Bosch steering gear	Brake control system: with ABS
Bumper: High bumper (full metal)		Fuel tank/gas cylinder:400L,500L,600L,700L,800L,750L +360L double tanks
Tires: 12.00R20,13R22.5,315/80R22.5(mixed tread/20PR)

Performance

The all-drive system of the Howo TX 400 8x8 Dump Truck provides excellent traction, enabling it to travel stably on complex and rugged terrain. This makes it very suitable for use in mines, construction sites, and other heavy-load transportation environments.

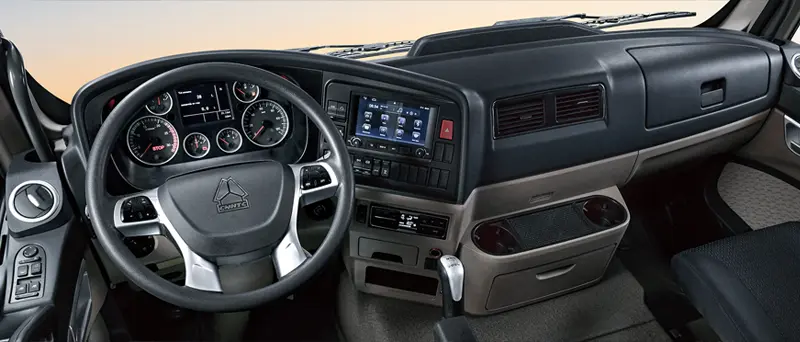

Excellent Ergonomic Design

All controls, instrument panels, and displays are intuitively arranged for easy access and quick information retrieval, minimizing distractions and maximizing driver focus.

All-Around Vision, Everything in Sight

HOWO-TX,Featuring wide-view design, four-way monitoring system (optional), and observation window (optional), the driver is accessible to comprehensive visual information about the surrounding environment and traffic dynamics of the vehicle, t

High Comfort

Featuring an adjustable air suspension seat, the HOWO-TX offers multi-directional electric adjustment and lumbar support, allowing drivers to personalize their seating for optimal comfort.

Strong Power, Efficient and Reliable

Meticulous design and optimization of the HOWO-TX powertrain, combined with careful component matching and integration, delivers seamless power transmission, maximized efficiency, enhanced vehicle performance, and significantly reduced fuel and maintenance expenses.

Transmission - Always in the Right Gear

The HW series transmission incorporates a globally advanced transmission design, employing a double countershaft main transmission coupled with a planetary gear auxiliary transmission. This results in simpler, more reliable, and more durable PTO and gear shifting operations.

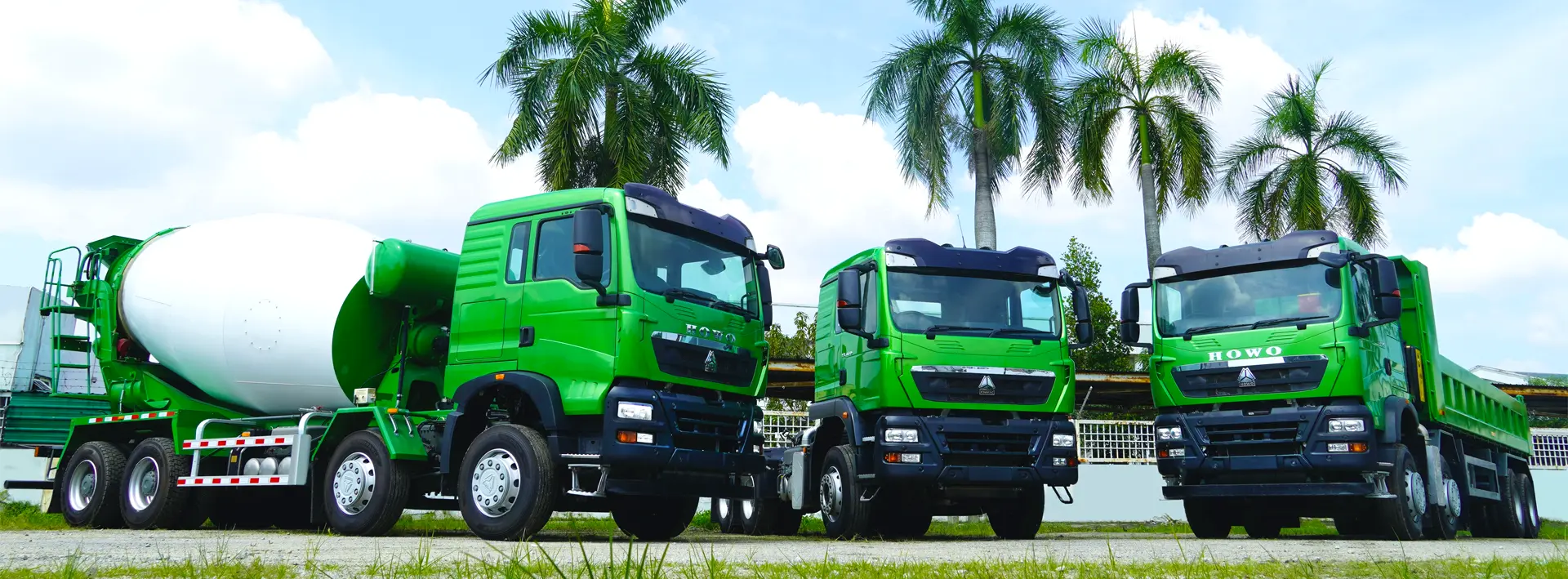

Gallery

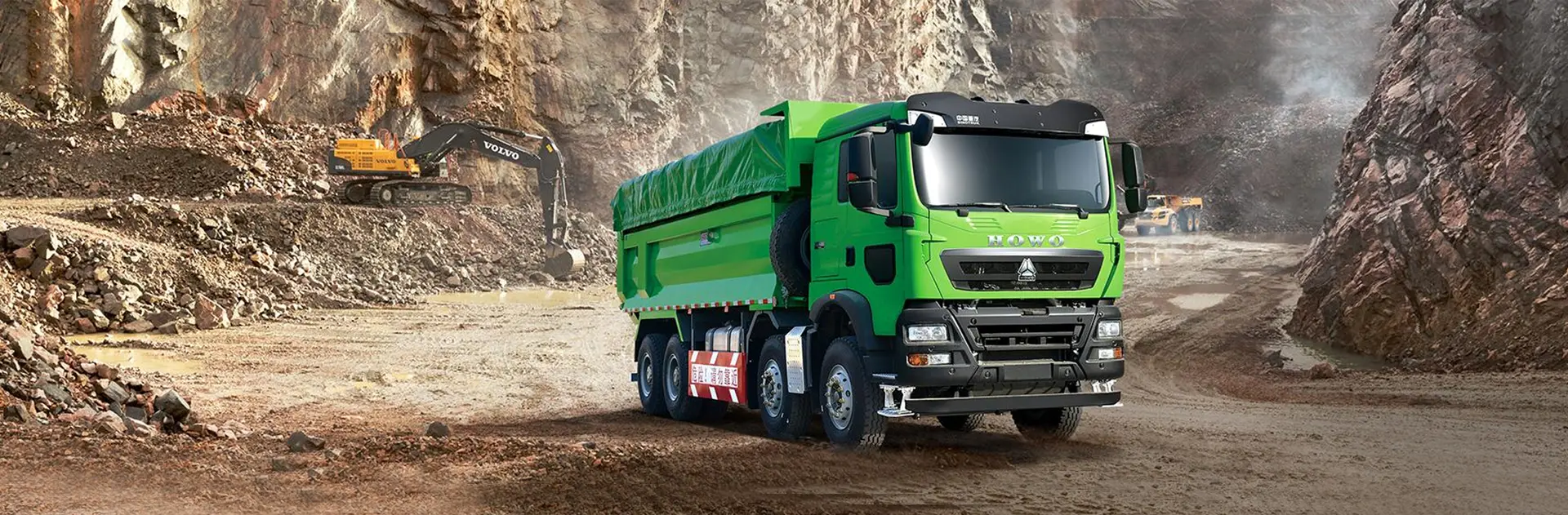

In mining operations, the Howo TX 400 8x8 Dump Truck can easily transport large amounts of ore and other heavy materials to ensure efficient operation progress.
