Trucks All models Heavy Truck Howo TX 400 8×4 Dump Truck

Howo TX 400 8×4 Dump Truck

Howo TX 400 8×4 Dump Truck is a newly launched flag ship of engineering dump truck produced by SINOTRUK on the basis of orthodox HOWO engineering dump truck with innovational power.

Models

Drive type: 8x4

Engine: Sinotruk WP10.380E22

Maximum Horsepower: 400 HP

Transmission: Sinotruk HW25712

Fuel tank capacity: 400L

Request a Quote WhatsApp

Product Description

Application

Howo TX 400 8×4 Dump Truck is a high-efficiency truck designed for heavy-duty transportation

Features

Howo TX 400 8×4 Dump Truck is a newly launched flag ship of engineering dump truck produced by SINOTRUK on the basis of orthodox HOWO engineering dump truck with innovational power, innovative configuration, combined with MAN power and Weichai high-end series of powertrain, in line with German MAN production and quality standards, and tested by all working conditions.

The HOWO TX series dump trucks are engineered for the most demanding applications in construction, municipal infrastructure, and mining. Both 6×4 and 8×4 drive configurations are available, providing a versatile solution to meet various operational needs.

Howo TX 400 8×4 Dump Truck Specifications

Brand: HOWO	Drive type: 6×4,8×4	Substrain: TX
Total mass (t):25	Weight (kg):9700	Wheelbase (mm):3625
Vehicle length (mm):7275	Vehicle width (mm):2522	Vehicle height (mm):3250, 3825
Engine: WD615.47,WP10.380E22,WP12.400E201 ,WP12.430E201,MC11.43-30,MC11-54-30	Engine power (Ps): 400,420,430,460	Emission level: Europe Ⅱ,Ⅲ,Ⅳ,Ⅴ
Cab: TX-M,TX-F	Transmission: HW19710,HW19712+HW70PTO,HW25712,ZF16S2231-TO
Frame: Double layer frame (8+8/300)	Front Axle: HF7,HF9,VGD71,VGD95 Front Axle (Drum)	Drive Axle: HC16,ST16,AC16,MCY13BGS,MCP16ZG ,MCX16ZG Dual Rear Axle(Drum)
Drive Axle Ratio: 3.7,3.93,4.11,4.42,4.77,5.26,5.451,5.73	Steering gear:Bosch steering gear	Brake control system: with ABS
Bumper: High bumper (full metal)		Fuel tank/gas cylinder:400L,500L,600L,700L,800L,750L +360L double tanks
Tires: 12.00R20,13R22.5,315/80R22.5(mixed tread/20PR)

Howo TX 400 8×4 Dump Truck Engineered for Performance

Both 6×4 and 8×4 models are powered by high-performance Weichai engines that meet China VI (Euro 6) emissions standards, providing strong performance with eco-friendliness. For heavy-duty usage, the Howo TX 400 8×4 Dump Truck model features the Weichai WP12.430E62 11.6L engine, delivering 430 horsepower and an astonishing 2100 Nm of torque at 1000-1400 rpm.

Performance

The HOWO TX series dump trucks are engineered for the most demanding applications in construction, municipal infrastructure, and mining. Both 6x4 and 8x4 drive configurations are available, providing a versatile solution to meet various operational needs.

Excellent Ergonomic Design

All controls, instrument panels, and displays are intuitively arranged for easy access and quick information retrieval, minimizing distractions and maximizing driver focus.

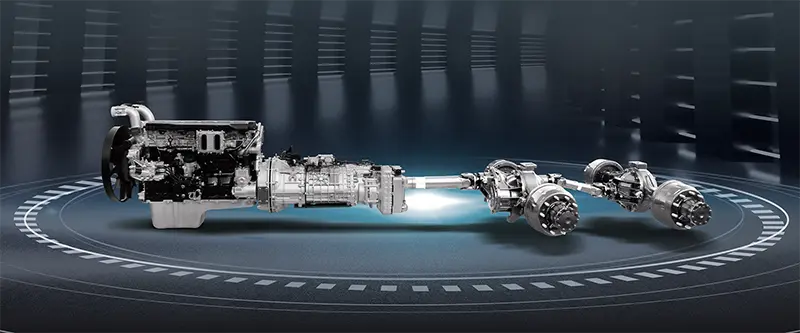

Strong Power, Efficient and Reliable

HOWO-TX powertrain delivers stable and reliable power support for a wide range of applications, including long-distance hauling, heavy-load transport, and challenging road conditions.

High Comfort

Featuring an adjustable air suspension seat, the HOWO-TX offers multi-directional electric adjustment and lumbar support, allowing drivers to personalize their seating for optimal comfort.

All-Around Vision, Everything in Sight

Featuring wide-view design, four-way monitoring system (optional), and observation window (optional), the driver is accessible to comprehensive visual information about the surrounding environment and traffic dynamics of the vehicle, thus making accurate assessments, and safely responding to various situations.

Transmission - Always in the Right Gear

The HW series transmission incorporates a globally advanced transmission design, employing a double countershaft main transmission coupled with a planetary gear auxiliary transmission. This results in simpler, more reliable, and more durable PTO and gear shifting operations.

Gallery

Howo TX 400 8×4 Dump Truck model features the Weichai WP12.430E62 11.6L engine, delivering 430 horsepower and an astonishing 2100 Nm of torque at 1000-1400 rpm.
