Trucks All models Heavy Truck Howo TX 400 6x4 Tipper Truck

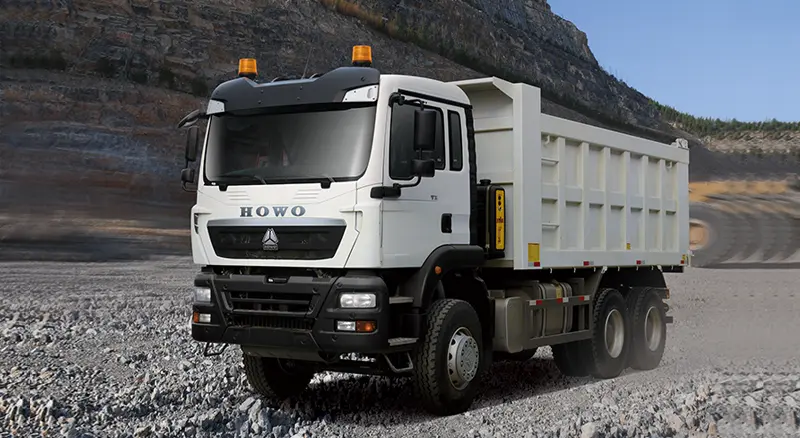

Howo TX 400 6x4 Tipper Truck

The optimized trapezoidal frame structure of HOWO TX 400 6x4 Tipper Truck reduces the deadweight of the whole truck by 8%, while maintaining the standard load capacity of 25 tons.

Models

Drive type: 6x4

Engine: Sinotruk MC11.44-60

Maximum Horsepower: 400hp

Transmission: Sinotruk HW25712XSL

Fuel tank capacity: 400L

Request a Quote WhatsApp

Product Description

Application

HOWO TX 400 6x4 Tipper Truck is a high-efficiency engineering model

Features

HOWO TX 400 6×4 Tipper Truck is a high-efficiency engineering model developed by sinotruk (CNHTC) for short- and medium-distance sand and gravel transportation.HOWO TX 400 6×4 Tipper Truck is equipped with a 400 HP National 6 emission engine, which, together with the 6×4 drive chassis design, demonstrates an excellent balance of power in the scenarios of urban and rural roads as well as construction sites.

The HOWO TX 400 6×4 Tipper Truck adopts a high-strength alloy steel cargo box with a box volume of 18 cubic meters, and the specially-designed backward tilting hydraulic system can complete the lifting of the cargo box in 25 seconds, which significantly improves the loading and unloading efficiency.

Truck Name	Howo TX 400 6×4 Tipper Truck
Model	ZZ3257N4647A
Driving Form	6X4
Cabin	HW TX cabin ,1 sleeper with AC
Engine	Make: SINOTRUK Diesel 4-stroke direct injection diesel engine Engine model: WD615.47, 371 HP
Transmission	HW19710, 10F & 2R, with PTO
Steering	ZF power steering, modol ZF8118, hydraulic steering with power assitance
Front Axle	HF9,1×9000 KGS Steering with doubleT-cross section beam
Rear Axle	HC16, 2×16000 KGS Pressed axle housing, central single reduction with hub reduction
Chassis	Frame: Uprofile parallel ladder frame with section of 300x80x8mm,reinforced subframe all cold riveted cross members
Brake	Service brake: dual circuit compressed air brake Parking brake (emergency brake): spring energy, compressed air operating on front shaft and rear wheels Auxiliary brake: engine exhaust brake
Electrics	Operating voltage: 24 V, negative grounded Starter: 24 V, 5.4 Kw Alternator: 3-phase, 28 V, 1500 W Batteries: 2 x 12 V, 165 Ah Cigar-lighter, horn, headlamps, fog lights, brake lights, indicators and reverse light
Tyres	12.00R20, radial tyres with one spare tyre
Fuel Tank	300L
Cargo Body	5600x2300x1500mm,Floor 8mm, Side 6 mm 20CBM ,Loading 40 tons
Overall Dimension	850025503450mm

Performance

The HOWO TX 400 6x4 Tipper Truck is equipped with a panoramic cab and air-damped seats to reduce driver fatigue through an ergonomic layout.

Excellent Ergonomic Design

All controls, instrument panels, and displays are intuitively arranged for easy access and quick information retrieval, minimizing distractions and maximizing driver focus.

High Comfort

Featuring an adjustable air suspension seat, the HOWO-TX offers multi-directional electric adjustment and lumbar support, allowing drivers to personalize their seating for optimal comfort.

All-Around Vision, Everything in Sight

Featuring wide-view design, four-way monitoring system (optional), and observation window (optional), the driver is accessible to comprehensive visual information about the surrounding environment and traffic dynamics of the vehicle...

Strong Power, Efficient and Reliable

Meticulous design and optimization of the HOWO-TX powertrain, combined with careful component matching and integration, delivers seamless power transmission, maximized efficiency, enhanced vehicle performance, and significantly reduced fuel and maintenance expenses.

Transmission - Always in the Right Gear

The HW series transmission incorporates a globally advanced transmission design, employing a double countershaft main transmission coupled with a planetary gear auxiliary transmission. This results in simpler, more reliable, and more durable PTO and gear shifting operations.

Gallery

The modular design of the powertrain system extends routine maintenance intervals by 30%, and together with the intelligent fault diagnosis system, the HOWO TX 400 6x4 Tipper Truck has become the preferred solution in the field of construction and transportation, taking into account both economy and reliability.
