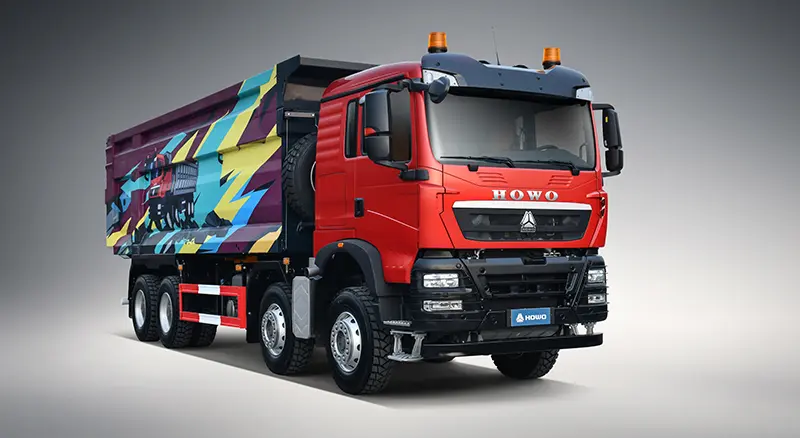

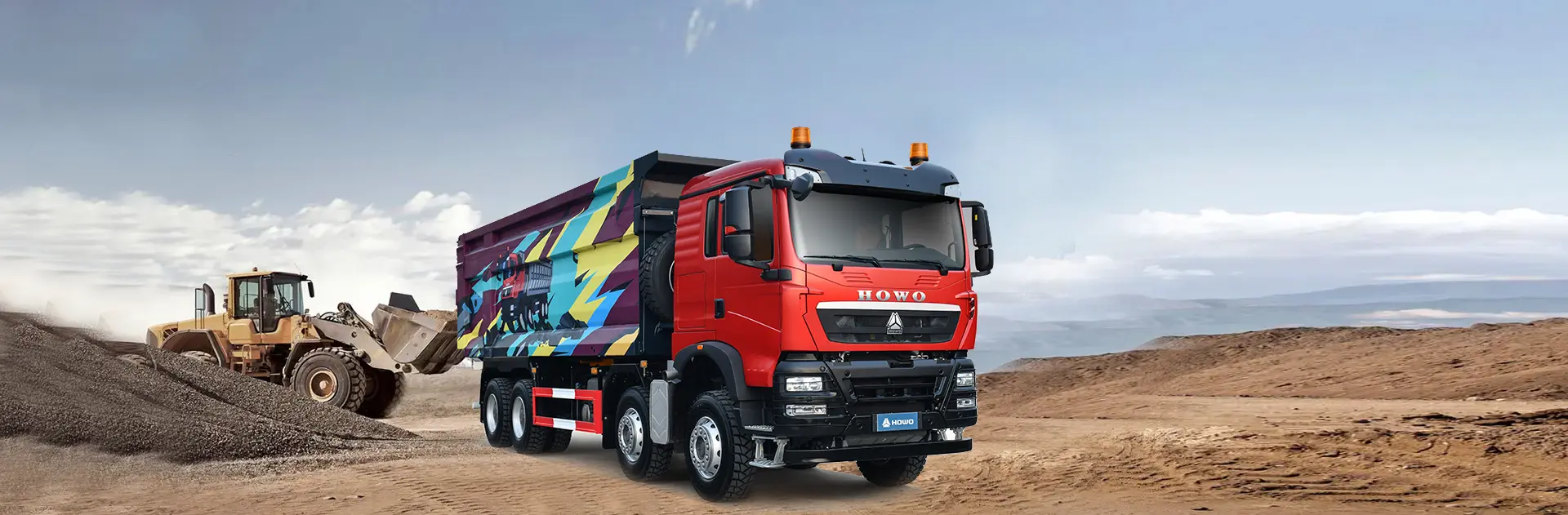

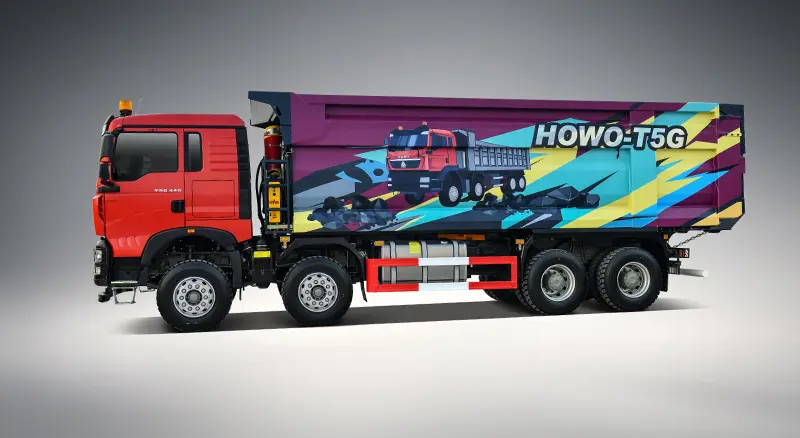

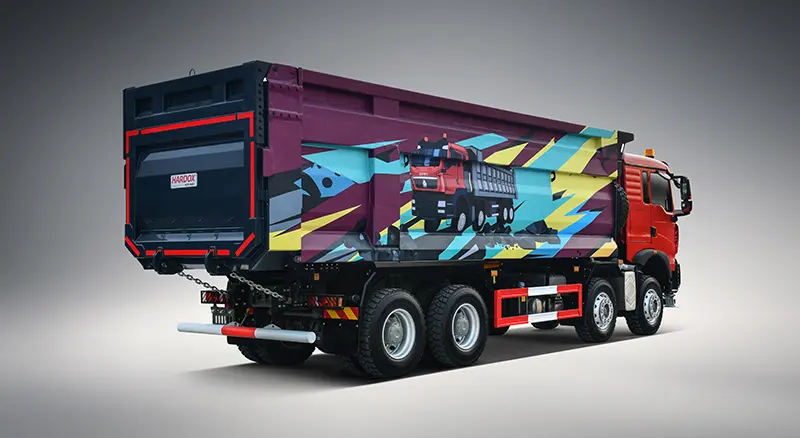

Howo T5G 440 8×4 Dump Truck

Howo T5G 440 8×4 Dump Truck Specifications

Net weight (excluding fuel and driver) 15,700 kg
Front axle load 14,000 kg
Rear bogie load 26,000 kg
Gross weight 40,000 kg
Overall dimensions: L x W x H, mm 10,400 x 2,496 x 3,850

Engine and powertrain components

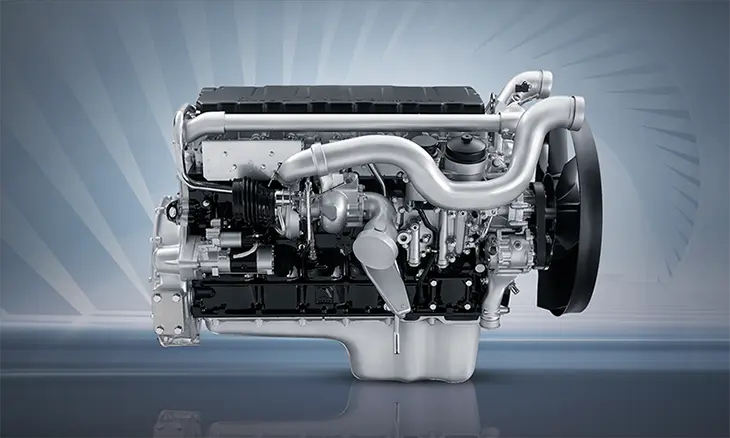

• Diesel engine MC11.44-50
• Power 324 kW (about 440 hp)
• Max. torque 2,100 Nm
• Ecological class 5
• Engine brake retarder
• High pressure fuel injection system

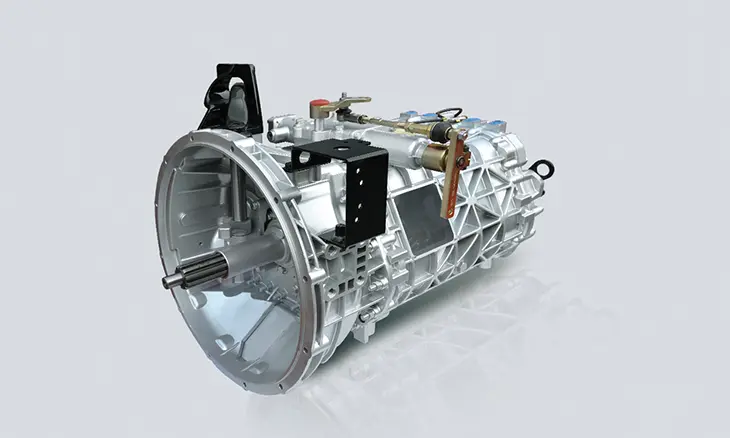

Gearbox
Gearbox HW mechanical, 12-speed, with manual control
Power take-off is mounted on the gearbox, with a splined output for installing a hydraulic pump

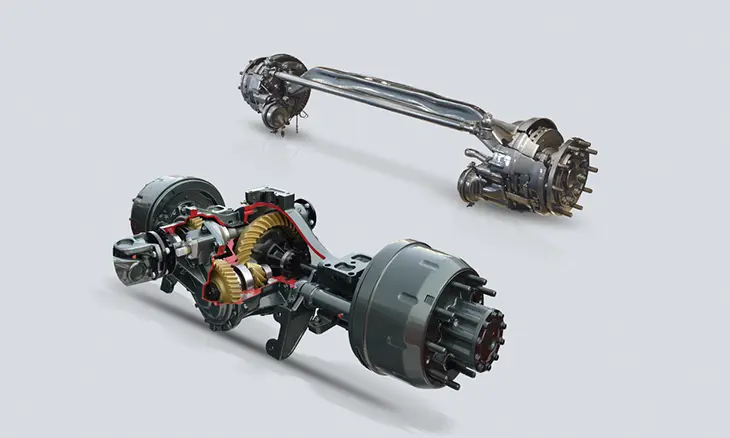

Drive axles with a two-stage spaced main gear, with
interaxle and interwheel differential locks
Drive axle ratio 5.33

Cab, external equipment
Cab type low sleeper cab, high engine tunnel, width 2,240 m
High steel bumper
Cab suspension four-point spring
Cab lifting mechanism with electric drive
Halogen headlights with LED daytime running lights; Fog lights in a separate unit
External sun visor
Two orange flashing beacons on the roof of the cabin
Rear-view mirrors with wide-angle sections, electrically adjustable and Cabin, interior equipment

Sleeping area one sleeping shelf, with additional lighting
Central locking with remote control
Driver’s seat adjustable, with air suspension; seat belt
built into the seat
Passenger seat basic, seat belt built into the seat, lifting seat cushion
Without sunroof
Driver’s instrument panel with a 5-inch monochrome display
Additional color touchscreen display of the multimedia system to the right of the steering wheel
Audio system. Bluetooth mobile phone connection function
All-round view system displaying images on an additional
multimedia system display (up to four cameras)
Automatic climate control system with air conditioning
Independent 4 kW cabin heater
Vehicle speed limiter 89 km/h
Internal sun visor

Chassis components
Exhaust system with muffler and built-in neutralizer
SCR selective catalytic converter system
Urea tank 45 l
Technically permissible front axle load 2 x 9,500 kg
Technically permissible rear bogie load 32,000 kg
Drum brakes on the front axles
Drum brakes on the rear axles with energy accumulators
Anti-lock braking system
Front dependent suspension, multi-leaf spring, with hydraulic telescopic
shock absorbers and anti-roll bar
Rear dependent suspension, multi-leaf spring, balance beam suspension with hydraulic shock absorbers, with anti-roll bar
with hydraulic booster
High-strength steel ladder frame, double with internal reinforcement, with
side member cross-section size of 300 x 85 x 8 + 8 mm
Wheelbase 3,800 mm
Front axle tire size 315/80 R22.5
Rear axle tire size 315/80 R22.5
One aluminum fuel tank 600 l
Fuel system with coarse filter-water separator, with electric
heating Batteries 2 x 180 Ah
Cold climate preparation kit
Battery box located on the right side of the frame
Reversing sound alarm
Steering
Adjustable multifunction steering wheel with buttons on the steering wheel
