Trucks All models Heavy Truck Howo T5G 400 6×4 Dump Truck

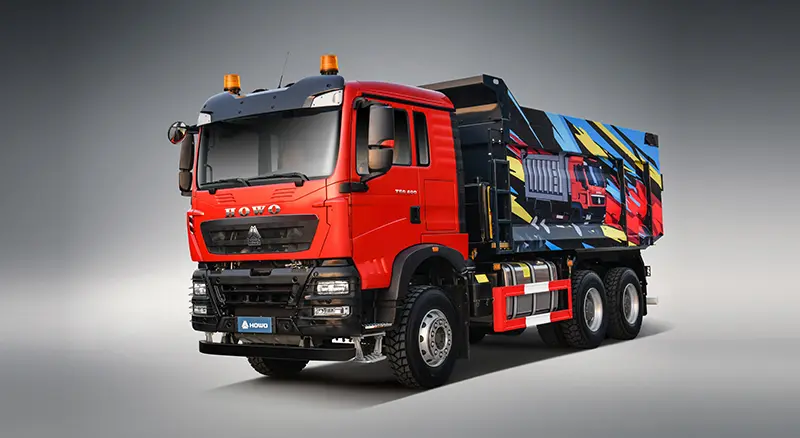

Howo T5G 400 6×4 Dump Truck

With its powerful 400 horsepower, Howo T5G 400 6×4 Dump Truck can easily cope with various complex transportation tasks, making it an ideal choice for the heavy-duty transportation industry.

Models

Drive type: 6x4

Engine: Sinotruk WD615.47

Maximum Horsepower: 400 HP

Transmission: Sinotruk HW19710, 10F & 2R

Fuel tank capacity: 400L

Request a Quote WhatsApp

Product Description

Application

Howo T5G 400 6×4 Dump Truck is a high-performance truck designed for heavy-duty transportation

Features

The Howo T5G 400 6×4 Dump Truck has a reasonable cabin design that can accommodate a large amount of cargo, greatly improving transportation efficiency. Whether it is sand, earthwork or other heavy materials, Howo T5G 400 6×4 Dump Truck can easily cope with it and ensure efficient operation.

In addition, Howo T5G 400 6×4 Dump Truck is equipped with an advanced suspension system and brake system to ensure safety and comfort under heavy load conditions. Howo T5G 400 6×4 Dump Truck’s powerful engine not only provides excellent performance, but also has good fuel economy, helping users reduce operating costs.

In short, Howo T5G 400 6×4 Dump Truck has become an indispensable tool in the heavy-duty transportation industry with its excellent performance and reliability, helping users to efficiently complete various transportation tasks and improve work efficiency.

Howo T5G 400 6×4 Dump Truck Specifications

Truck Name	Sinotruk Howo T5G 400 6×4 Dump Truck
Model	ZZ3257N4647A
Driving Form	6X4
Cabin	HW TX cabin ,1 sleeper with AC
Engine	Make: SINOTRUK Diesel 4-stroke direct injection diesel engine Engine model: WD615.47, 371 HP
Transmission	HW19710, 10F & 2R, with PTO
Steering	ZF power steering, modol ZF8118, hydraulic steering with power assitance
Front Axle	HF9,1×9000 KGS Steering with doubleT-cross section beam
Rear Axle	HC16, 2×16000 KGS Pressed axle housing, central single reduction with hub reduction
Chassis	Frame: Uprofile parallel ladder frame with section of 300x80x8mm,reinforced subframe all cold riveted cross members
Brake	Service brake: dual circuit compressed air brake Parking brake (emergency brake): spring energy, compressed air operating on front shaft and rear wheels Auxiliary brake: engine exhaust brake
Electrics	Operating voltage: 24 V, negative grounded Starter: 24 V, 5.4 Kw Alternator: 3-phase, 28 V, 1500 W Batteries: 2 x 12 V, 165 Ah Cigar-lighter, horn, headlamps, fog lights, brake lights, indicators and reverse light
Tyres	12.00R20, radial tyres with one spare tyre
Fuel Tank	300L
Cargo Body	5600x2300x1500mm,Floor 8mm, Side 6 mm 20CBM ,Loading 40 tons
Overall Dimension	850025503450mm

Performance

The 6×4 drive system of this Howo T5G 400 6×4 Dump Truck provides excellent traction and stability, allowing it to perform well on rugged terrain.

Excellent Ergonomic Design

All controls, instrument panels, and displays are intuitively arranged for easy access and quick information retrieval, minimizing distractions and maximizing driver focus.

High Comfort

Featuring an adjustable air suspension seat, the HOWO-TX offers multi-directional electric adjustment and lumbar support, allowing drivers to personalize their seating for optimal comfort.

All-Around Vision, Everything in Sight

Featuring wide-view design, four-way monitoring system (optional), and observation window (optional), the driver is accessible to comprehensive visual information about the surrounding environment and traffic dynamics of the vehicle...

Strong Power, Efficient and Reliable

Meticulous design and optimization of the HOWO-TX powertrain, combined with careful component matching and integration, delivers seamless power transmission, maximized efficiency, enhanced vehicle performance, and significantly reduced fuel and maintenance expenses.

Transmission - Always in the Right Gear

The HW series transmission incorporates a globally advanced transmission design, employing a double countershaft main transmission coupled with a planetary gear auxiliary transmission. This results in simpler, more reliable, and more durable PTO and gear shifting operations.

Gallery

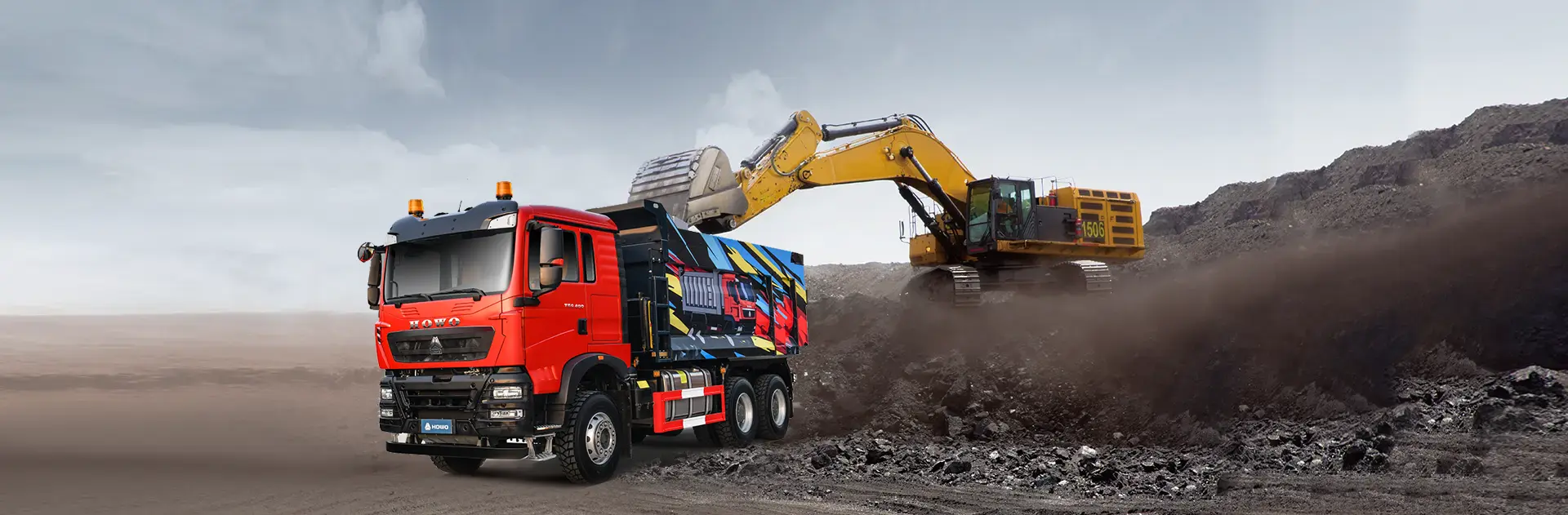

Howo T5G 400 6×4 Dump Truck is a high-performance truck designed for heavy-duty transportation, which is widely used in fields such as construction, mining and infrastructure construction.
